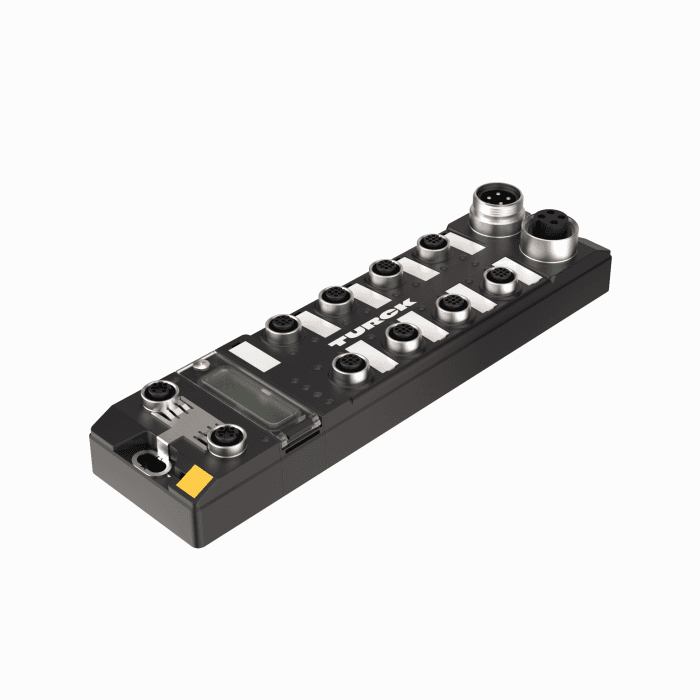

Compact Multiprotocol RFID Module for Ethernet
TBEN-L4-4RFID-8DXP-CDS
Order ID no. 6814121
home
Home
Loading...
Technical Data
Cable length (m)
50
Ambient temperature min. (°C)
-40
Ambient temperature max. (°C)
70
Protection class
IP65, IP67, IP69K
Network protocol
Modbus TCP, EtherNet/IP, PROFINET
Operating voltage
DC
Connection technology signal
M12
Number of channels
12
Programming
CODESYS V3
Signal type
RFID, Digital input, Digital input/output, Digital output
Approvals
ATEX Zone 2/22, cULus
Connection technology Ethernet
2 x M12, 4-pin, D-coded
Transmission rate Ethernet
10/100 Mbps
Installation area
non-Ex
Output voltage
24 VDC from potential group
Key Features
Network protocol
Modbus TCP, EtherNet/IP, PROFINET
Number of channels
12
Protection class
IP65, IP67, IP69K
home
Turck-Shop
Identification
Interfaces HF/UHF
TBEN-L4-4RFID-8DXP-CDS
In Stock
Price Group
D1
List Price
A$3,853.78
Item Total
A$3,853.78
