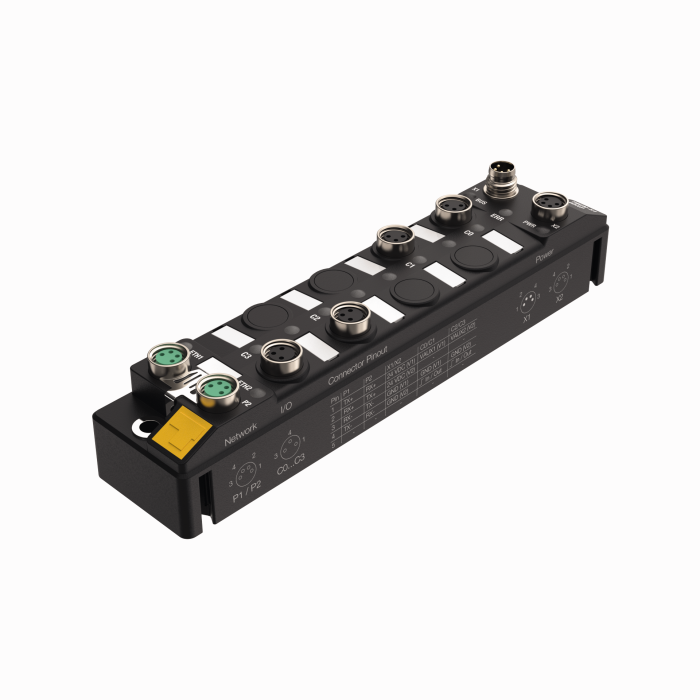

Compact Multiprotocol I/O Module for Ethernet
TBEN-S1-4DXP
Order ID no. 100006468| In Stock | |
| List Price | A$668.34 |
Item TotalA$668.34
Quantity
- Protection class
- IP65, IP67, IP69K
- Network protocol
- Modbus TCP, EtherNet/IP, PROFINET, CC-Link IE Field Basic
- Approvals
- ATEX Zone 2/22, cULus, IECEx, CCC
- Ambient temperature min. (°C)
- -40
- Ambient temperature max. (°C)
- 70
- Number of channels
- 8
- Installation area
- zone 2, zone 22
- Output voltage
- 24 VDC from potential group
- Connection technology signal
- M8
- Signal type
- Digital input, Digital input/output, Digital output
Key Features
- Connection technology signal
- M8
- Network protocol
- Modbus TCP, EtherNet/IP, PROFINET, CC-Link IE Field Basic
- Protection class
- IP65, IP67, IP69K
- Signal type
- Digital input, Digital input/output, Digital output
