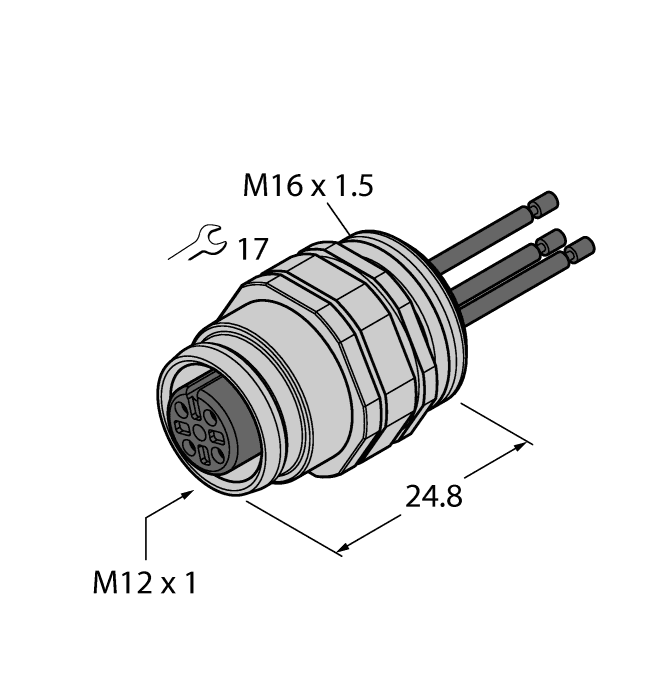

Female Flange with Stranded Wires, Front-mounted
EC-FKD8-0.5/16
Order ID no. 6934610| In Stock | |
| Price Group | K1 |
| List Price | A$100.60 |
Item TotalA$100.60
Quantity
- Core cross-section (mm²)
- 0.25
- Receptacle housing material A
- Brass
- Application
- Signal
- Current (A)
- 2
- Voltage (V)
- 30
- Approvals
- CE
- Connection mode
- Wire connection
- Connector A
- Female, M12 × 1, Straight, A-coded
- Number of Pins
- 8
- Screw-in thread
- M16 × 1.5
- Number of Conductors
- 8
Key Features
- Connector A
- Female, M12 × 1, Straight, A-coded
- Number of Pins
- 8
- Receptacle housing material A
- Brass
- Screw-in thread
- M16 × 1.5
