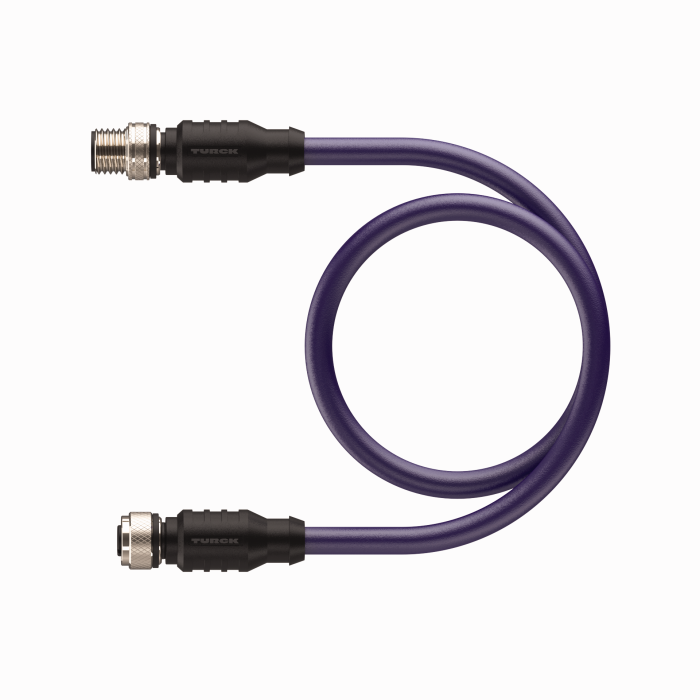

PROFIBUS Cable
RSSW RKSW 458-10M
Order ID no. U0398-421| In Stock | |
| List Price | A$356.96 |
Item TotalA$356.96
Quantity
- Network protocol
- PROFIBUS-DP
- Cable length
- 10
- Application
- Data
- Design
- Extension Cable
- Connector A

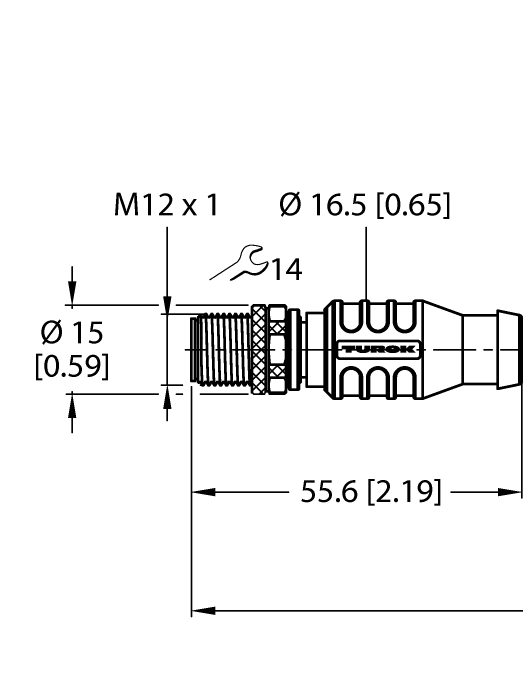

- Male, M12 × 1, Straight, B-coded
- Number of pins
- 5
- Coupling nut/screw material A
- Brass
- Connector B

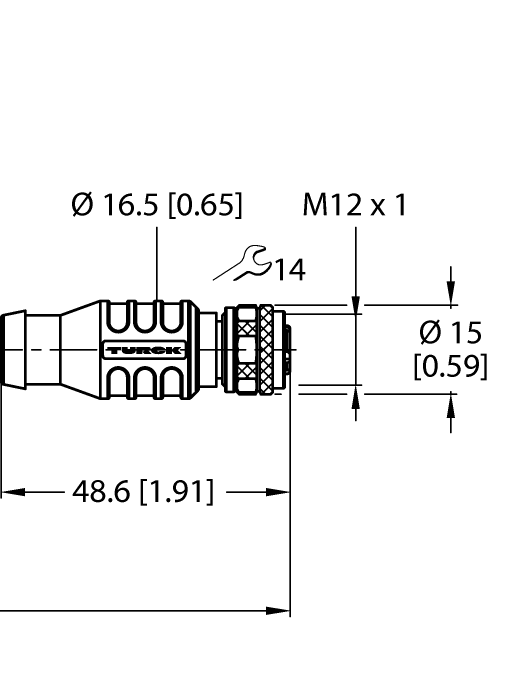

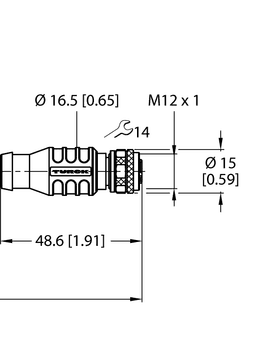

- Female, M12 × 1, Straight, B-coded
- Number of Pins
- 5
- Coupling nut/screw material B
- Brass
- Voltage
- 250
- Current
- 4
- Cable quality
- PUR
- Cable color
- Violet
- Special features
- Shielded
- Approvals
- UL, CSA
- Ambient temperature min.
- -40
- Ambient temperature max.
- 60
- Core cross-section
- 0.34
- Number of Conductors
- 2
Key Features
- Cable length
- 10
- Cable quality
- PUR
- Connector A
- Male, M12 × 1, Straight, B-coded
- Connector B
- Female, M12 × 1, Straight, B-coded
