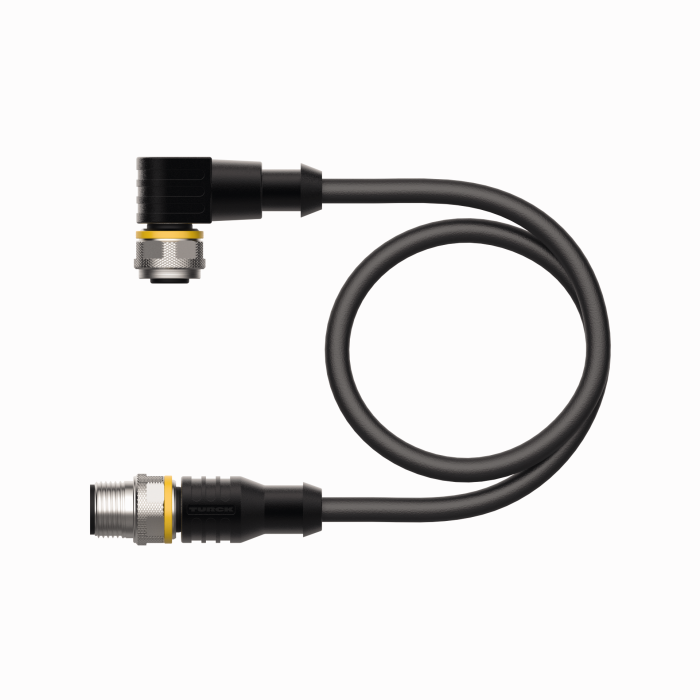

RFID Cable Economy Version
WK4.5T-2-RS4.5T/S2503
Order ID no. 7030336| In Stock | |
| List Price | A$154.02 |
Item TotalA$154.02
Quantity
- Cable length (m)
- 2
- Application
- RFID
- Design
- Extension Cable
- Connector A
- Female, M12 × 1, Angled, A-coded
- Number of pins
- 5
- Coupling nut/screw material A
- Brass
- Connector B
- Male, M12 × 1, Straight, A-coded
- Number of Pins
- 5
- Coupling nut/screw material B
- Brass
- Voltage (V)
- 30
- Current (A)
- 4
- Cable quality
- PUR
- Cable color
- Black
- Approvals
- Cable UL Style 20549
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 80
- Core cross-section (mm²)
- 0.25
- Number of Conductors
- 2
Key Features
- Cable length (m)
- 2
- Cable quality
- PUR
- Connector A
- Female, M12 × 1, Angled, A-coded
- Connector B
- Male, M12 × 1, Straight, A-coded
