RKSD-RKSD-4422-5M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Industrial Ethernet Cable

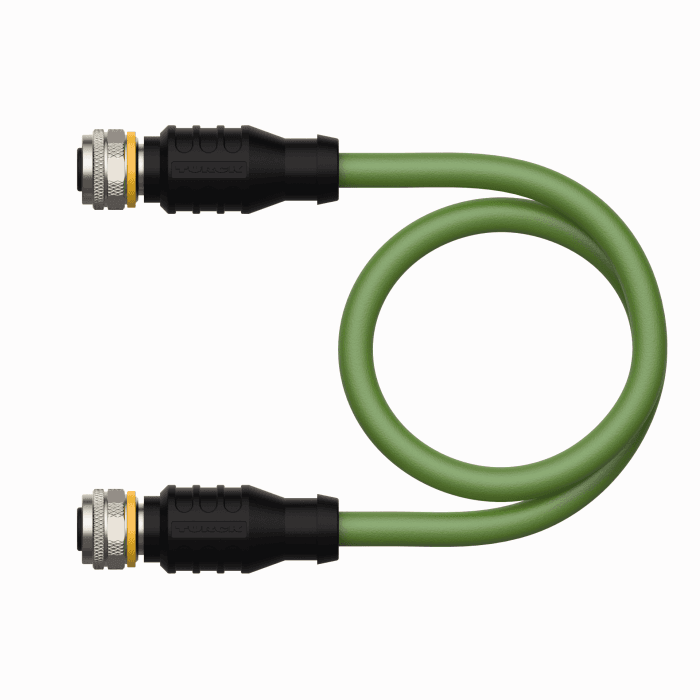

RKSD-RKSD-4422-5M
Order ID no. 6636308
home
Home
Loading...
Technical Data
Cable length (m)
5
Ambient temperature min. (°C)
-30
Ambient temperature max. (°C)
80
Network protocol
Ethernet
Cable color
Green
Core cross-section (mm²)
0.32
Cable quality
PUR
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Application
Data
Current (A)
4
Voltage (V)
48
Approvals
UL Listed
Connector A
Female, M12 × 1, Straight, D-coded
Number of Pins
4
Connector B
Female, M12 × 1, Straight, D-coded
Number of Pins
4
Design
Extension Cable
Number of Conductors
4
Key Features
Cable length (m)
5
Cable quality
PUR
Connector A
Female, M12 × 1, Straight, D-coded
Connector B
Female, M12 × 1, Straight, D-coded
In Stock
Price Group
K2
List Price
A$160.90
home
Turck-Shop
Connectivity
Cordsets
RKSD-RKSD-4422-5M
Item Total
A$160.90
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
