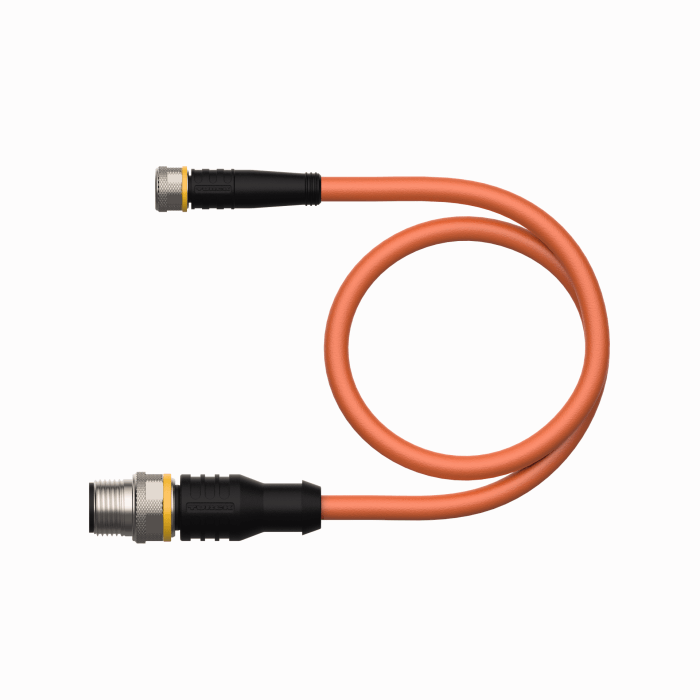

Actuator and Sensor Cable, PUR
PKG3M-1-RSC4T/TXO
Order ID no. 6635842| In Stock | |
| List Price | A$37.55 |
Item TotalA$37.55
Quantity
- Cable length (m)
- 1
- Application
- Signal
- Design
- Extension Cable
- Connector A
- Female, M8 × 1, Straight
- Number of pins
- 3
- Coupling nut/screw material A
- Brass
- Connector B
- Male, M12 × 1, Straight, A-coded
- Number of Pins
- 3
- Coupling nut/screw material B
- Brass
- Current (A)
- 4
- Cable quality
- PUR
- Cable color
- Orange
- Special features
- Suitable for drag chain use
- Approvals
- cULus
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 80
- Core cross-section (mm²)
- 0.34
- Number of Conductors
- 3
Key Features
- Cable length (m)
- 1
- Cable quality
- PUR
- Connector A
- Female, M8 × 1, Straight
- Connector B
- Male, M12 × 1, Straight, A-coded
