Actuator and Sensor Cable, PUR

RKS4.5T-12-RSS4.5T/TXY

Order ID no. 6635059

In Stock
List Price	A$233.80

Cable length (m): 12
Application: Signal
Design: Extension Cable

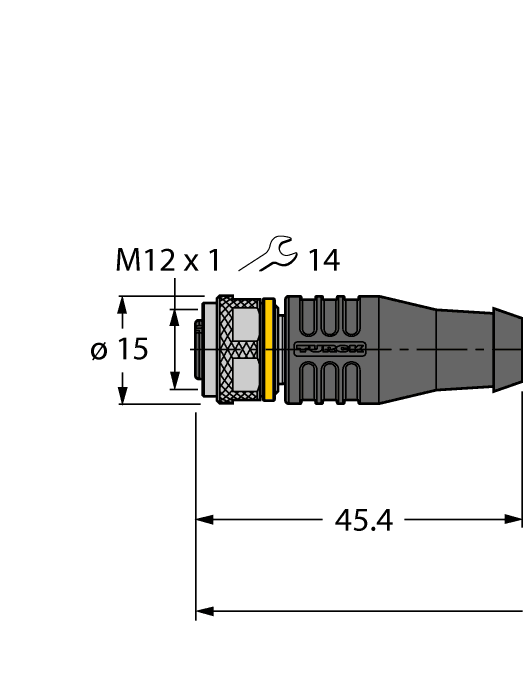

Connector A: Female, M12 × 1, Straight, A-coded
Number of pins: 5
Coupling nut/screw material A: Brass

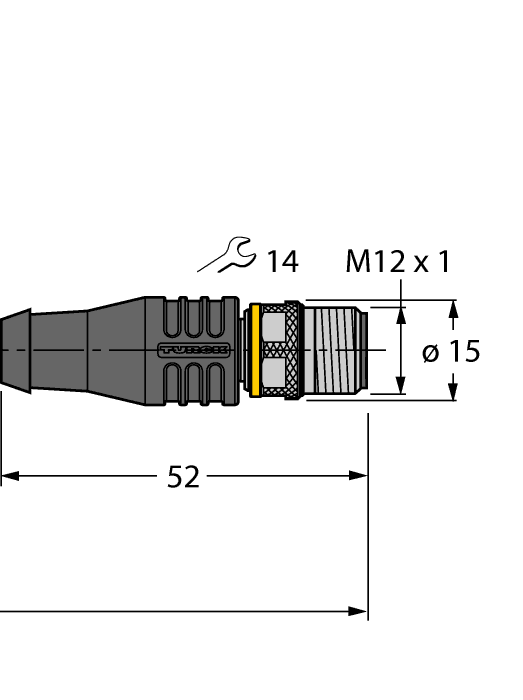

Connector B: Male, M12 × 1, Straight, A-coded
Number of Pins: 5
Coupling nut/screw material B: Brass
Voltage (V): 60
Current (A): 4
Cable quality: PUR
Cable color: Yellow
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Approvals: cULus
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Core cross-section (mm²): 0.34
Number of Conductors: 5
