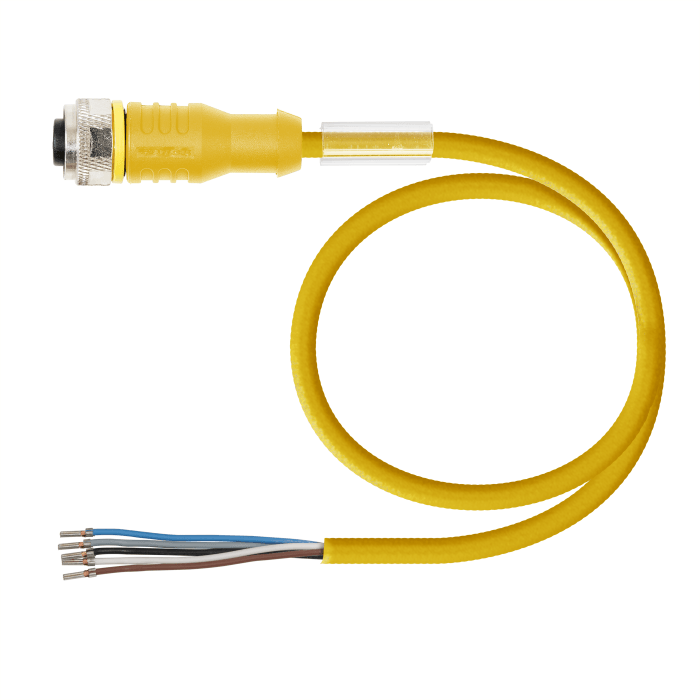

Actuator and Sensor Cable, PUR

RKC4.5T-8/TXY6713

Order ID no. 6632079

Cable length (m): 8
Ambient temperature min. (°C): -25
Ambient temperature max. (°C): 80
Cable color: Yellow
Core cross-section (mm²): 0.34
Cable quality: PUR
Coupling nut/screw material A: Brass
Special features: AIDA, Resistant to welding sparks, Suitable for drag chain use
Application: Signal
Current (A): 4
Voltage (V): 60
Approvals: cULus
Connector A: Female, M12 × 1, Straight, A-coded
Number of Pins: 5
Design: Connection Cable
Number of Conductors: 5
