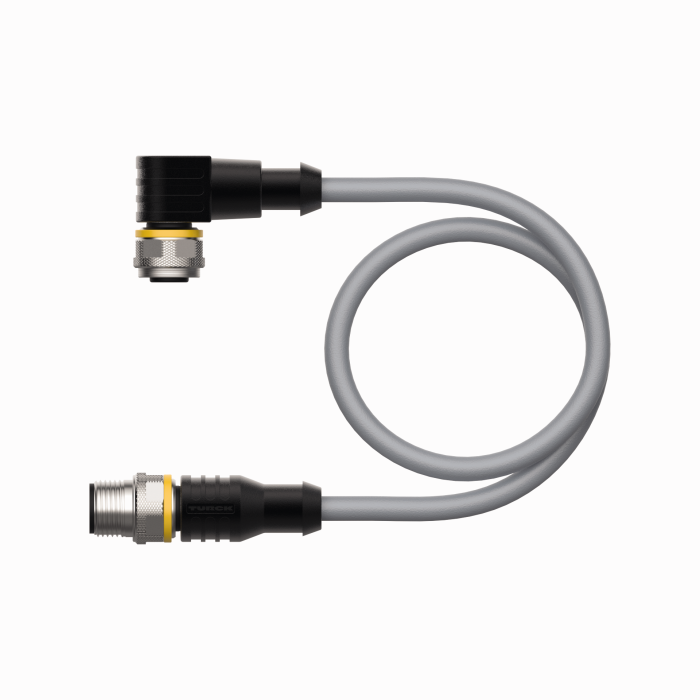

Actuator and Sensor Cable, PVC
WKC4T-2-RSC4T/TEG
Order ID no. 6629821| In Stock | |
| List Price | A$37.03 |
Item TotalA$37.03
Quantity
- Cable length (m)
- 2
- Ambient temperature min. (°C)
- -5
- Ambient temperature max. (°C)
- 80
- Cable color
- Gray
- Core cross-section (mm²)
- 0.34
- Cable quality
- PVC
- Coupling nut/screw material A
- Brass
- Coupling nut/screw material B
- Brass
- Application
- Signal
- Current (A)
- 4
- Voltage (V)
- 250
- Approvals
- cULus
- Connector A
- Female, M12 × 1, Angled, A-coded
- Number of Pins
- 3
- Connector B
- Male, M12 × 1, Straight, A-coded
- Number of Pins
- 3
- Design
- Extension Cable
- Number of Conductors
- 3
Key Features
- Cable length (m)
- 2
- Cable quality
- PVC
- Connector A
- Female, M12 × 1, Angled, A-coded
- Connector B
- Male, M12 × 1, Straight, A-coded
