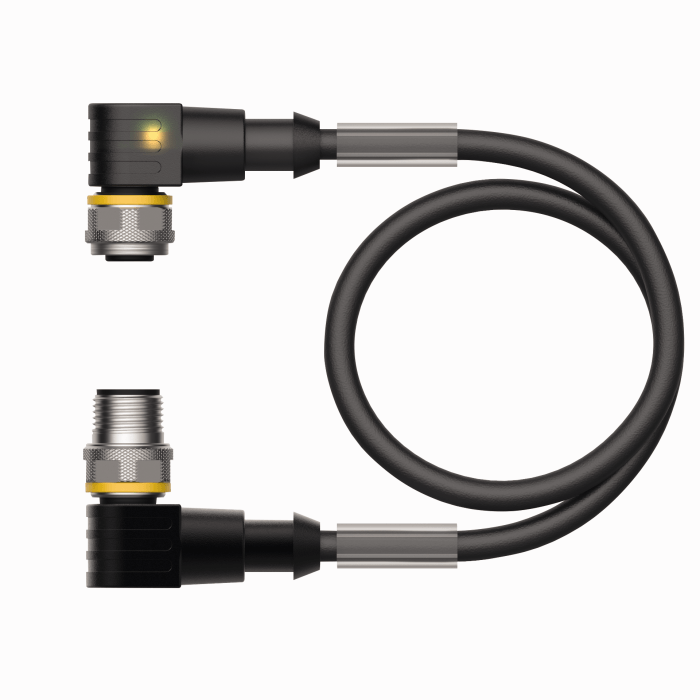

Actuator and Sensor Cable, PUR
WKC4.4T-P7X2-0.3-WSC4.4T/TXL
Order ID no. 6625792| In Stock | |
| List Price | A$50.91 |
Item TotalA$50.91
Quantity
- Cable length (m)
- 0.3
- Ambient temperature min. (°C)
- -25
- Ambient temperature max. (°C)
- 80
- Cable color
- Black
- Core cross-section (mm²)
- 0.34
- Cable quality
- PUR
- Coupling nut/screw material A
- Brass
- Coupling nut/screw material B
- Brass
- Special features
- LED
- Application
- Signal
- Current (A)
- 4
- Approvals
- cULus
- Connector A
- Female, M12 × 1, Angled, A-coded
- Number of Pins
- 4
- Connector B
- Male, M12 × 1, Angled, A-coded
- Number of Pins
- 4
- Design
- Extension Cable
- Number of Conductors
- 4
Key Features
- Cable length (m)
- 0.3
- Cable quality
- PUR
- Connector A
- Female, M12 × 1, Angled, A-coded
- Connector B
- Male, M12 × 1, Angled, A-coded
