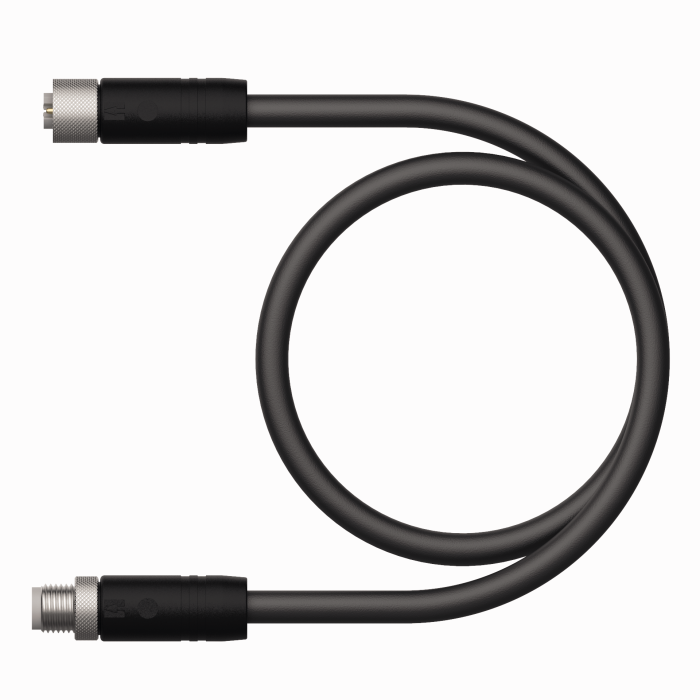

Supply Cable - M12 Power

RKS46PTB-4-RSS46PTB/TXL

Order ID no. 100024014

Cable length (m): 4
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 80
Cable color: Black
Core cross-section (mm²): 1.5
Cable quality: PUR
Coupling nut/screw material A: Brass
Coupling nut/screw material B: Brass
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Application: Power
Current (A): 16
Approvals: cULus

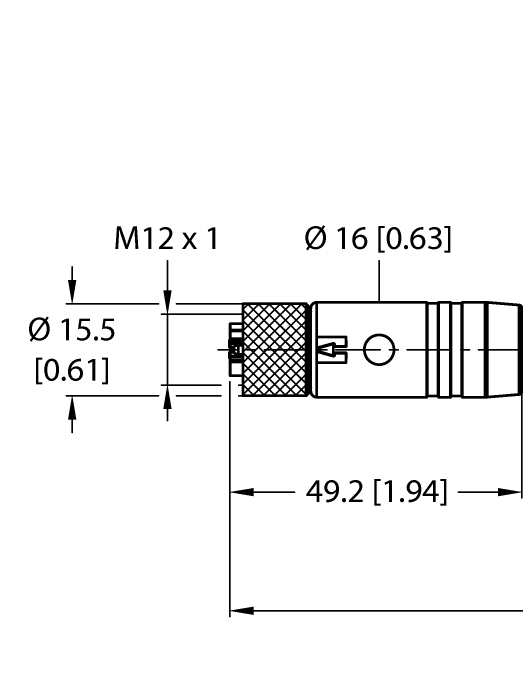

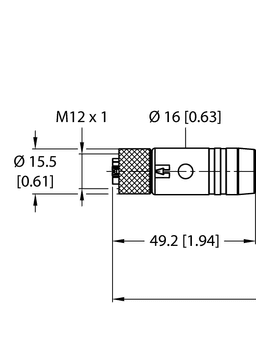

Connector A: Female, M12 × 1, Straight, T-coded
Number of Pins: 4

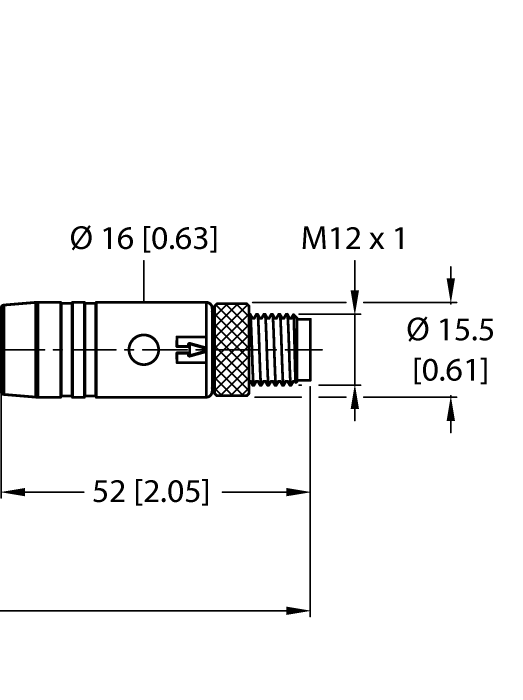

Connector B: Male, M12 × 1, Straight, T-coded
Number of Pins: 4
Design: Extension Cable
Number of Conductors: 4

In Stock
List Price	A$293.46
